CMOS相机

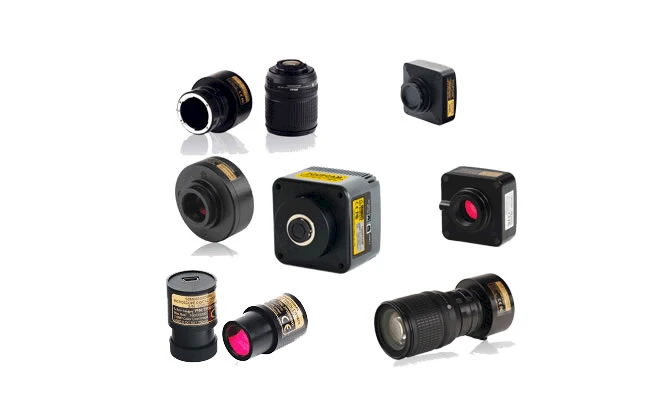

ToupCam显微镜相机列表
ToupCam显微镜相机系列产品大全，TE制冷CCD相机、USB3.0 CCD相机、USB3.0 CMOS相机、 US2.0 Sony EXCCD相机...
选型前建议核对样品、观察方式与成像接口。也可直接拨打 0512-62752246 沟通需求。
产品介绍
- SCCCD: TE制冷CCD相机
- U3CCD: USB3.0 CCD相机
- U3CMOS: USB3.0 CMOS相机
- EXCCD: US2.0 Sony EXCCD相机
- UHCCD: USB2.0 Sony HCCD相机
- UCMOS: USB2.0 CMOS相机
- SCMOS:目镜式CMOS相机
| P/N | 型号名 | 传感器 | 像素 | 帧速率 | 像素尺寸 | 传感器尺寸 | 适配器 |
|---|---|---|---|---|---|---|---|
| SCCCD 系列相机 (半导体制冷USB2.0 C接口CCD相机, 有现货) | |||||||
| TP905200A | SCCCD05200KPA | ICX655AQ | 510 | 4fps//2592X1944 | 2.78X2.78 | 2/3 | |
| TP901400A | SCCCD01400KPA | ICX285AQ | 140 | 15fps//1360X1024 | 6.45X6.45 | 2/3 | |
| TP901400A | SCCCD01400KPB | ICX205AK | 140 | 15fps//1360X1024 | 4.65X4.65 | 1/2 | |
| TM901400A | SCCCD01400KMA | ICX285AK | 140 | 15fps//1360X1024 | 6.45X6.45 | 2/3 | |
| TM901400B | SCCCD01400KMB | ICX205AL | 140 | 15fps//1360X1024 | 4.65X4.65 | 1/2 | |
| EXCCD系列相机(USB2.0 C接口Sony EXCCD相机，有现货) | |||||||
|---|---|---|---|---|---|---|---|
| TP8001400A | EXCCD01400KPA | ICX285AQ | 140 | 15fps//1360X1024 | 6.45X6.45 | 2/3 | 0.75X |
| TM8001400A | EXCCD01400KMA | ICX285AK | 140 | 15fps//1360X1024 | 6.45X6.45 | 2/3 | 0.75X |
| TM800300A | EXCCD00300KMA | ICX619AL | 30 | 72fps//640X480 | 5.6X5.6 | 1/4 | 0.37X |
| UHCCD系列相机(USB2.0 C接口Sony HCCD相机, 有现货) | |||||||
|---|---|---|---|---|---|---|---|
| TP705200A | UHCCD05200KPA | ICX655AQ | 520 | 4fps//2592X1944 | 2.78X2.78 | 2/3 | 0.75X |
| TP705100A | UHCCD05100KPA | ICX452AQ | 510 | 4fps//2592X1944 | 2.78X2.78 | 1/1.8 | 0.75X |
| TP705000A | UHCCD05000KPA | ICX282Q | 500 | 4.5fps//2560X1920 | 3.4X3.4 | 2/3 | 0.75X |
| TP703100B | UHCCD03100KPB | ICX252AQ | 310 | 6fps//2048X1536 | 3.45X3.45 | 1/1.8 | 0.75X |
| TP703100A | UHCCD03100KPA | ICX412AQ | 310 | 6fps//2048X1536 | 3.45X3.45 | 1/1.8 | 0.75X |
| TP702000A | UHCCD02000KPA | ICX274AQ | 200 | 10fps//1600X1200 | 4.4X4.4 | 1/1.8 | 0.75X |
| TP701400A | UHCCD01400KPA | ICX205AK | 140 | 8fps//1360X1024 | 4.65X4.65 | 1/2 | 0.5X |
| TP701400B | UHCCD01400KPB | ICX205AK | 140 | 15fps//1360X1024 | 4.65X4.65 | 1/2 | 0.5X |
| TP700800A | UHCCD00800KPA | ICX204AK | 80 | 16fps//1024X768 | 4.65X4.65 | 1/3 | 0.5X |
| L3CMOS系列相机(带缓存USB3.0 C接口CMOS相机，有现货) | |||||||
|---|---|---|---|---|---|---|---|
| LP114000A | L3CMOS14000KPA | MT9F002 | 1400 | 6.2fps//4096x3286 | 1.4X1.4 | 1/2.3 | 0.50X |
| LP110000A | L3CMOS10000KPA | MT9J003 | 1000 | 7.2fps//3584X2748 | 1.67X1.67 | 1/2.3 | 0.50X |
| LP108500A | L3CMOS08500KPA | Special | 850 | 8.3fps//3584X2746 | 1.67X1.67 | 1/2.4 | 0.50X |
| LP105100A | L3CMOS05100KPA | MT9P006 | 510 | 15fps//2592X1944 | 2.2X2.2 | 1/2.5 | 0.50X |
| LP103100A | L3CMOS03100KPA | AR0330 | 310 | 28fps//2048X1536 | 3.2X3.2 | 1/3 | 0.50X |
| LP101200B | L3CMOS01200KPB | AR0130 | 120 | 15fps//1280X960 | 3.75X3.75 | 1/3 | 0.50X |
| U3CMOS系列相机(USB3.0 C接口CMOS相机, 有现货) | |||||||
|---|---|---|---|---|---|---|---|
| TP118000A | U3CMOS18000KPA | AR1820(C | 1800 | 5.6@4912x3684 | 1.25X1.25 | 1/2.3 | 0.50X |
| TP114000A | U3CMOS14000KPA | MT9F001 | 1400 | 6.2fps//4096X3286 | 1.4X1.4 | 1/2.3 | 0.50X |
| TP110000A | U3CMOS10000KPA | MT9J003 | 1000 | 7.2fps//3584X2748 | 1.67X1.67 | 1/2.3 | 0.50X |
| TP108500A | U3CMOS08500KPA | Special | 850 | 8.3fps//3584X2746 | 1.67X1.67 | 1/2.4 | 0.50X |
| TP105100A | U3CMOS05100KPA | MT9P006 | 510 | 15fps//2592X1944 | 2.2X2.2 | 1/2.5 | 0.50X |
| TP103100A | U3CMOS03100KPA | AR0330 | 310 | 28fps//2048X1536 | 3.2X3.2 | 1/3 | 0.37X |
| LCMOS系列相机(带缓存USB2.0 C接口CMOS相机,有现货) | |||||||
|---|---|---|---|---|---|---|---|
| LP601200B | LCMOS00350KPA | ARO130 | 120 | 28fps//1280X960 | 3.75X3.75 | 1/3 | 0.37X |
| LP601300A | LCMOS01300KPA | MT9M111 | 130 | 15fps//1280X1024 | 3.6X3.6 | 1/3 | 0.37X |
| LP602000B | LCMOS02000KPB | Special | 200 | 16fps//1600X200 | 3.2X3.2 | 1/2.6 | 0.50X |
| LP603100B | LCMOS03100KPB | IMX036 | 310 | 12fps@2048X1536 | 2.5X2.5 | 1/2.8 | 0.50X |
| LP603100A | LCMOS03100KPA | MT9T001 | 310 | 11.5fps//2048X1536 | 3.2X3.2 | 1/2 | 0.50X |
| LP605100A | LCMOS05100KPA | MT9P001 | 510 | 7fps//2592X1944 | 2.2X2.2 | 1/2.5 | 0.50X |
| LP608000B | LCMOS08000KPB | Special | 800 | 4.4fps//3264X2448 | 1.67X1.67 | 1/2.5 | 0.50X |
| LP609000B | LCMOS09000KPB | Special | 910 | 3.9fps//3488X2616 | 1.67X1.67 | 1/2.4 | 0.50X |
| LP610000A | LCMOS10000KPA | MT9J003 | 1000 | 3.7fps//3584X2748 | 1.67X1.67 | 1/2.3 | 0.50X |
| LP614000A | LCMOS14000KPA | MT9F002 | 1400 | 2.7fps//4096X3288 | 1.4X1.4 | 1/2.3 | 0.50X |
| UCMOS系列相机(USB 2.0 C接口Aptina CMOS相机，有现货) | |||||||
|---|---|---|---|---|---|---|---|
| TP600350A | UCMOS00350KPA | MT9V001 | 35 | 30fps//640X480 | 5.6X5.6 | 1/4 | 0.37X |
| TP601300A | UCMOS01300KPA | MT9M001 | 130 | 18fps//1280X1024 | 3.6X3.6 | 1/3 | 0.37X |
| TP602000A | UCMOS02000KPA | MT9D111 | 200 | 8fps//1600X1200 | 3.2X3.2 | 1/3.2 | 0.37X |
| TP602000B | UCMOS02000KPB | Special | 200 | 16fps//1600X200 | 3.2X3.2 | 1/3 | 0.50X |
| TP603100A | UCMOS03100KPA | MT9T001 | 310 | 8fps//2048X1536 | 3.2X3.2 | 1/2 | 0.50X |
| TP605100A | UCMOS05100KPA | MT9P001 | 510 | 5fps//2592X1944 | 2.2X2.2 | 1/2.5 | 0.50X |
| TP608000B | UCMOS08000KPB | Special | 800 | 1.9fps//3264X2448 | 1.67X1.67 | 1/2.5 | 0.50X |
| TP609000B | UCMOS09000KPB | Special | 910 | 1.9fps//3488X2616 | 1.67X1.67 | 1/2.4 | 0.50X |
| TP610000A | UCMOS10000KPA | MT9J001 | 1000 | 1.9fps//3584X2748 | 1.67X1.67 | 1/2.3 | 0.50X |
| TP614000A | UCMOS14000KPA | MT9F001 | 1400 | 1.8fps//4096X3288 | 1.4X1.4 | 1/2.3 | 0.50X |
| ICMOS系列相机(USB2.0 C接口CMOS工业相机, 有现货) | |||||||
|---|---|---|---|---|---|---|---|
| IP603100A | ICMOS03100KPA | MT9T001 | 310 | 12fps//2048X1536 | 3.2X3.2 | 1/2 | 0.50X |
| IM601300A | ICMOS01300KPA | MT9M001 | 130 | 30fps//1280X1024 | 5.2X5.2 | 1/2 | 0.50X |
| WCAM系列WIFI相机(WIFI C接口CMOS相机，有现货) | |||||||
|---|---|---|---|---|---|---|---|
| WP601080A | WCAM1080PA | MT9P001 | 510 | 15fps//1960X1280 | 2.2X2.2 | 1/2.5 | 0.50X |
| WP600720A | WCAM0720PA | MT9P001 | 510 | 30fps//1280X720 | 2.2X2.2 | 1/2.5 | 0.50X |
| WP600720B | WCAM0720PB | MT9P001 | 510 | 10fps//1280X720 | 2.2X2.2 | 1/2.5 | 0.50X |
| WP600300KPA | WCAM0300KPA | MT9V011 | 30 | 25fps//640X480 | 5.6X5.6 | 1/4 | 0.50X |
| SCMOS系列相机(紧凑式USB2.0 CMOS显微镜目镜筒式相机（23.2mm DIA目镜筒接口） | |||||||
|---|---|---|---|---|---|---|---|
| TP500350A | SCMOS00350KPA | Special | 35 | 30fps/640X480 | 5.6X5.6 | 1/4 | NA |
| TP501300A | SCMOS01300KPA | Special | 130 | 7.5fps/1280X1024 | 3.6X3.6 | 1/3 | NA |
| TP502000A | SCMOS02000KPA | Special | 200 | 5fps/1600X1200 | 2.8X2.8 | 1/3.2 | NA |
| TP503000A | SCMOS03000KPA | Special | 300 | 3fps/2048X1536 | 2.2X2.2 | 1/2.7 | NA |
| TP505000A | SCMOS05000KPA | Special | 500 | 2fps/2592x 1944 | 2.2X2.2 | 1/2.5 | NA |
| 线阵CCD相机 (有现货) | |||||||
|---|---|---|---|---|---|---|---|
| TM400511A | LHCCD00511 | ILX511 | 2048 | NA | 14X200 | 28 | NA |
| TM400554A | LHCCD00554 | ILX554 | 2048 | NA | 14X56 | 28 | NA |
| TM401304A | LHCCD01304 | TCD1304 | 3648 | NA | 8X200 | 29.2 | NA |
可选配件
适配器镜头
| 产品编号 | 适配器型号 | 适配器视场尺寸(mm) | 对应传感器尺寸 |
|---|---|---|---|
| 可调焦显微镜适配器 | |||
| 108001 | AMA037 | 18X0.37=6.7 | 1/4”~1/3” |
| 108002 | AMA050 | 18X0.50=9 | 1/2”~2/3” |
| 108003 | AMA075 | 18X0.75=12 | 1/1.8”~1” |
| 固定式显微镜适配器 | |||
| 108005 | FMA037 | 18X0.37=6.7 | 1/4”~1/3” |
| 108006 | FMA050 | 18X0.50=9 | 1/2”~2/3” |
| 108007 | FMA075 | 18X0.75=12 | 1/1.8”~1” |
| 可调焦望远镜适配器 | |||
|---|---|---|---|
| 108008 | ATA037 | 18X0.37=6.7 | 1/4”~1/3” |
| 108009 | ATA050 | 18X0.50=9 | 1/2”~2/3” |
| 108010 | ATA075 | 18X0.75=12 | 1/1.8”~1” |
| 固定式望远镜适配器 | |||
|---|---|---|---|
| 108011 | FTA037 | 18X0.37=6.7 | 1/4”~1/3” |
| 108012 | FTA050 | 18X0.50=9 | 1/2”~2/3” |
| 108013 | FTA075 | 18X0.75=12 | 1/1.8”~1” |
| 奥林巴斯 TV 适配器（适用于奥林巴斯CX,BX,IX显微镜) | |||
|---|---|---|---|
| N2691500 | U-TV0.35XC-2 | 22X0.35=7.7 | 1/3”~1/2” |
| N2691600 | U-TV0.5xC-3 | 22X0.5=11 | 1/1.8”~1/2” |
| N2179000 | U-TV0.63x | 22X0.63=13.86 | 1”~2/3”~1/1.8” |
| 037194 | U-TV1x-2 | 22X1=22 | 1”~2/3”~1/1.8” |
| 037175 | U-CMAD3 | 1X C-Mount adaptor connector | |
| 莱卡TV适配器(专门为LEICA DM系列生物与体视工业显微镜而设计 ) | |||
|---|---|---|---|
| 11541512 | 0.35X | 22X0.35=7.7 | 1/3”~1/2” |
| 11541544 | 0.55X | 22X0.5=11 | 1/1.8”~1/2” |
| 11541543 | 0.70X | 22X0.63=13.86 | 1”~2/3”~1/1.8” |
| 11541510 | 1x | 22X1=22 | 1”~2/3”~1/1.8” |
| 尼康TV适配器 (专配尼康E100,E200,50i,55i,80i,90i, Ni series, Ti Series, SMZ800,SMZ1000, SMZ15000生物显微镜与工业显微镜） | |||
|---|---|---|---|
| MQD42035 MBB42035 | 0.35X | 22X0.35=7.7 | 1/3”~1/2” |
| MQD42055 MBB42055 | 0.55X | 22X0.5=11 | 1/1.8”~1/2” |
| MQD42070 MBB42070 | 0.70X | 22X0.63=13.86 | 1”~2/3”~1/1.8” |
| MQD42000 MBB42000 | 1X | 22X1=22 | 1”~2/3”~1/1.8” |
| Labomed TV适配器(专配LB系列生物与工业显微镜) | |||
|---|---|---|---|
| LB0.35X | 0.35X | 22X0.35=7.7 | 1/3”~1/2” |
| LB0.50X | 0.55X | 22X0.5=11 | 1/1.8”~1/2” |
| LB0.65X | 0.70X | 22X0.63=13.86 | 1”~2/3”~1/1.8” |
| LB1.0X | 1X | 22X1=22 | 1”~2/3”~1/1.8” |
| HUVITZ TV适配器(专配HUVITZ HRM系列, HSZ系列显微镜) | |||
|---|---|---|---|
| LB0.35X | 0.35X | 22X0.35=7.7 | 1/3”~1/2” |
| LB0.50X | 0.55X | 22X0.5=11 | 1/1.8”~1/2” |
| LB0.65X | 0.70X | 22X0.63=13.86 | 1”~2/3”~1/1.8” |
| LB1.0X | 1X | 22X1=22 | 1”~2/3”~1/1.8” |
